[Power]
Yamaha mid-drive motor
Max torque: 55 Nm
Объявите здесь что-нибудь
Политика использования файлов cookie
Я согласен на обработку моих данных в соответствии с условиями, изложенными в политике конфиденциальности.Корзина
Ваша корзина пуста
This trekking e-bike's Yamaha mid-drive motor gives you progressive, dynamic assistance. Its 55 Nm Torque helps you get up hills effortlessly.
Безопасная оплата
Мы также предлагаем оплату в 2, 3 или 4 платежа при покупке от 150 евро.
Безопасная оплата
Мы также предлагаем оплату в 2, 3 или 4 платежа при покупке от 150 евро.
Возврат и обмен
У вас есть до 90 дней, чтобы вернуть ваши товары.
Дополнительная информация доступна по этой ссылке.
Возврат и обмен
У вас есть до 90 дней, чтобы вернуть ваши товары.
Дополнительная информация доступна по этой ссылке.
Yamaha mid-drive motor
Max torque: 55 Nm
Adjustable handlebar position: stem adjusts from -10° to +60°.
Reinforced tyre with rubber + nylon protection. Puncture protection rating: 5/5.
With the DECATHLON Mobility app, you can track your stats and earn points
Compatible with rear pannier racks, child seats and trailers.
Описание
Can be charged directly on the bike or off the bike. Fully charges in 7 hours with the 2A charger provided. Compatible with the Rockrider 4A charger for faster charging (ref: 8753941).
Yes. If the battery is flat or isn't attached to your bike, the weight of the bike and the motor will make it much harder to ride than a traditional hybrid bike. But you can still ride it if you break down.
All of the electrical components (controller, motor, battery, etc.) are resistant to dust and rain (IPX-5). This means that you can leave your bike outside in the rain without the battery. Any water that might get into the hole where the battery would normally be will run off the bike and won't damage the components. Do not wash with a pressure washer.
The type approval certificate is available on the Decathlon support website.
The acronym ACTV stands for "ACTIVE". We've designed this bike for everyone looking to adopt a more active lifestyle and reconnect with nature. The "e" means that this is an electrical assistance bike.
Motor: Yamaha PW-C2. Max light output: 250 W The maximum power (at thermal equilibrium) is limited by e-bike standards. All bikes have the same maximum power. Max torque: 55 Nm Torque is a better way of comparing e-bike motors. The motor's torque corresponds to the force that the motor is able to exert on the cranks. The electrical assistance cuts out above 25 km/h in accordance with EU regulations.
The mid-drive motor better distributes the weight across the bike compared with a hub motor. The motor and battery are positioned low down and between the wheels. The result: the bike is easy to handle, just like a traditional hybrid bike.
With a mid-drive motor, the power of the assistance is directly adjusted based on your pedalling effort: - When the slope that you're riding up increases, the motor detects that you're pushing harder on the pedals and instantly helps you more. - When you slow down, the motor detects that you're easing up your pedalling and instantly reduces the assistance. The result: assistance that's easy to control. Assistance controlled by the torque sensor.
Like you, the mid-drive motor benefits from the gear reduction. The assistance is therefore more effective up hills than with a hub motor of the same power. The energy efficiency of the mid-drive motor is also better than that of a hub motor. The bike's range is therefore greater than with a hub motor paired with a battery of the same size.
5 assistance settings: Mode 0: assistance off Mode 1 (eco): increases your power by 70%: if you're pedalling at 100 W, the motor adds 70 W. Mode 2 (tour): increases your power by 150%: if you're pedalling at 100 W, the motor adds 150 W. Mode 3 (sport): increases your power by 220%: if you're pedalling at 100 W, the motor adds 220 W. Mode 4 (boost): increases your power by 280%: if you're pedalling at 100 W, the motor adds 280 W. Walk mode: helps you when walking alongside your bike.
The battery range varies depending on the weight being transported (user + load), the elevation gain, the wind and the outside temperature. Our tests have assessed the maximum battery range on relatively flat terrain without a load (no pannier bags or trailer): Mode 1 (eco): up to 150 km Mode 2 (tour): up to 100 km Mode 3 (sport): up to 65 km Mode 4 (boost): up to 40 km
Lithium-ion 36 V - 504 Wh battery. Locked into the bike's frame for better integration and protection. Quick release with key (3 keys included) to recharge it. Built-in carry handle. Weight: 3.1 kg Compatible with a 360 Wh battery extender (sold separately). Reference: 8655251
Press on the lower arrow at the side of the bike's screen for 3 seconds to turn on the light. Lights powered by the bike's battery: - LED AXA NXT60 front light. Power: 60 lux. - LED rear light fixed to the rear mudguard. The rear light remains active (on lower power) for 4 minutes after turning off the bike.
Colour control screen on the left of the handlebar. Information available: - current speed - motor power and user power - battery percentage - estimated remaining range (in km) - distance covered on this journey (manual reset) - total bike distance Use the switch next to the bike's left handle to choose your assistance mode. USB port (USB-A) for charging a smartphone (1.5 A).
Download the Decathlon Mobility app and turn your smartphone into a smart dashboard with live tracking and Auto Mode. Review the history and battery usage of your rides after you’ve finished, and manage your bike’s maintenance with ease (tutorials, workshop appointments, updates and insurance).

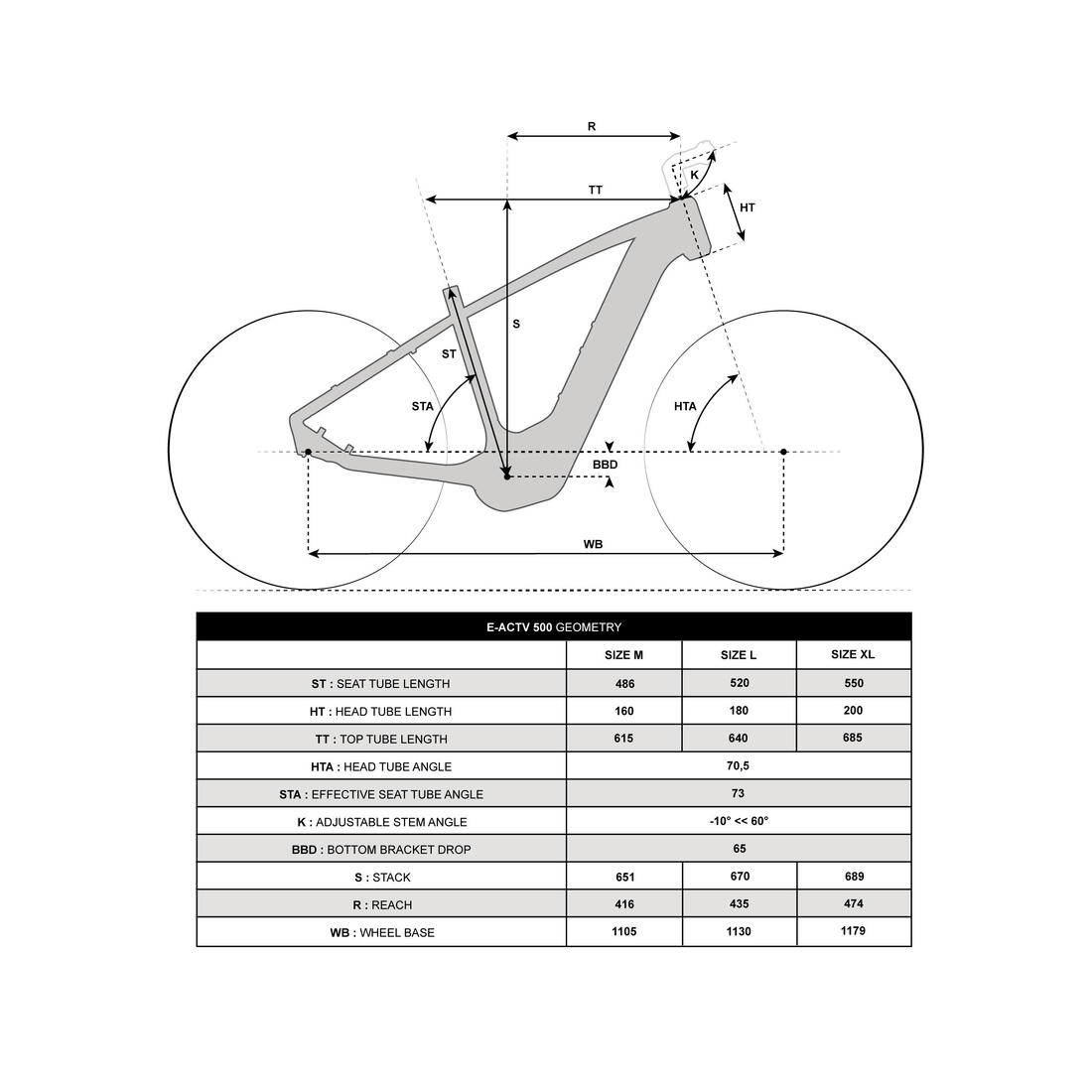

We have designed two versions of the e-actv 500: - Low frame version: The low frame version is easy to get onto. You only need to lift your leg 43 cm. This is particularly useful when you're using a child seat. - High frame version: The high frame version is stiffer and gives you more precise steering, particularly on rough terrain and when you're carrying a heavy load.
Sizes available for the low frame version: Size S: 1.50 m to 1.65 m. Size M from 1.66 m to 1.77 m. Size L: 1.78 m to 1.90 m. Sizes available for the high frame version: Size M from 1.66 m to 1.77 m. Size L: 1.78 m to 1.90 m. Size XL: 1.90 m to 2.01 m. If you're between 2 sizes: Get the smaller size if you want a more upright position. Get the bigger size if you want a more stretched-out position.
You can adjust the position of the handlebar by adjusting the angle of the stem using an Allen key. Raise the stem for a more upright back position. Lower it for a sportier position. Stem: - Length: 90 mm, diameter: 31.8 mm - Stem angle adjustment: from -10° (angled down) to +60° (raised) Headset: 1⅛". Ergonomic grips made from resin + cork composite.
Suntour SF15 NEX-E25 suspension fork. - Spring: coil - Steerer tube: 1⅛" aluminium - 60 mm travel - aluminium blade
ROCKRIDER PROTECT+ all-terrain tyres offering excellent puncture protection (maximum level of 5/5). Dimensions: 700x47 mm (ETRTO 47-622) Puncture protection level: 5/5 Type of protection: 3 mm high-density rubber + polyamide band dual protection Reflective strips: yes Carcass: 60 TPI Weight: 1010 g Tubeless compatible: No
We've chosen to use the Acolyte derailleur because of its durability. 8 gears: reducing the drivetrain to just 8 gears means bigger – and therefore sturdier – cogs. "Single click" switch: avoids gear changes being too quick when the chain is subjected to stresses that could damage it. 12x42 cassette: we've opted for a cassette with 12 teeth, rather than 11, on the smallest cog. This makes the cassette last longer.
In detail: - MICROSHIFT H083 12x42T 8-speed cassette - Single chainring: Miranda 38T anti-chain-drop (3D chain flow) chainring - 170 mm cranks - KMC E8 chain with master link - Rear derailleur: MICROSHIFT ACOLYTE - MICROSHIFT ACOLYTE shifter
Rims Reinforced (double-walled) asymmetric rims Inner width: 25c Not tubeless compatible Spokes: 32 front and 32 rear Rustproof treatment (galvanised) Hubs: Sealed cartridge bearings. Axles: Quick release
Rockrider Trekking long ride saddle. We conducted morphological studies aiming to understand where the pressure points are on different body types. We designed the size of the saddle and selected the foam so as to better distribute these pressure points. The saddle was then tested in real use and updated based on feedback from our testers.
Aluminium frame. The main tube is made using gravity casting. This technology makes it possible to create complex tube shapes with variable thicknesses. This allows us to strengthen the tube where needed so that it remains stiff and durable. Maximum tyre size compatible with the mudguard: 700x47 mm
TEKTRO T280 hydraulic disc brakes (160 mm front and rear diameter). Hydraulic brakes are more precise than cable-actuated brakes and the level of braking is easier to control.
We've chosen to use wide platform pedals to keep you more comfortable and give you a feeling of stability. Aluminium pedals.
We've developed a pannier rack that is specifically designed for the e-actv 500 (ref. 8828232). It is easy to attach to the frame using 4 screws, and needs no further adjustment. It is compatible with child seats and with most pannier bags on the market (including bags that use the MIK installation system). Max load: 27 kg.
The stand is fixed to the rear chainstay. This means that you can push your bike along without the pedals getting caught in the stand. Maximum load supported by the stand: 35 kg.
The mudguards ensure that there is always 6 mm of space between the tyre and mudguard. They allow you to ride on dirt tracks without mud getting clogged between the tyre and the mudguard.
Compatible with: • bottle cage: 1 fixing point on the frame. If you need a second bottle, we recommend using a fabric bottle holder on your handlebar. • rear pannier rack: compatible with most pannier racks available on the market. We recommend our dedicated rack (ref: 8828232) • frame lock (ref: 8735625) • pannier-rack-mounted child seat • frame-mounted child seat Not compatible with central stands.
24.6 kg in size M (with battery) 21.6 kg in size M (without battery)
The e-actv 500 is approved for a total maximum load of 120 kg: user + bike + additional load (bags, child, etc.).
Описание
Can be charged directly on the bike or off the bike. Fully charges in 7 hours with the 2A charger provided. Compatible with the Rockrider 4A charger for faster charging (ref: 8753941).
Yes. If the battery is flat or isn't attached to your bike, the weight of the bike and the motor will make it much harder to ride than a traditional hybrid bike. But you can still ride it if you break down.
All of the electrical components (controller, motor, battery, etc.) are resistant to dust and rain (IPX-5). This means that you can leave your bike outside in the rain without the battery. Any water that might get into the hole where the battery would normally be will run off the bike and won't damage the components. Do not wash with a pressure washer.
The type approval certificate is available on the Decathlon support website.
The acronym ACTV stands for "ACTIVE". We've designed this bike for everyone looking to adopt a more active lifestyle and reconnect with nature. The "e" means that this is an electrical assistance bike.
Motor: Yamaha PW-C2. Max light output: 250 W The maximum power (at thermal equilibrium) is limited by e-bike standards. All bikes have the same maximum power. Max torque: 55 Nm Torque is a better way of comparing e-bike motors. The motor's torque corresponds to the force that the motor is able to exert on the cranks. The electrical assistance cuts out above 25 km/h in accordance with EU regulations.
The mid-drive motor better distributes the weight across the bike compared with a hub motor. The motor and battery are positioned low down and between the wheels. The result: the bike is easy to handle, just like a traditional hybrid bike.
With a mid-drive motor, the power of the assistance is directly adjusted based on your pedalling effort: - When the slope that you're riding up increases, the motor detects that you're pushing harder on the pedals and instantly helps you more. - When you slow down, the motor detects that you're easing up your pedalling and instantly reduces the assistance. The result: assistance that's easy to control. Assistance controlled by the torque sensor.
Like you, the mid-drive motor benefits from the gear reduction. The assistance is therefore more effective up hills than with a hub motor of the same power. The energy efficiency of the mid-drive motor is also better than that of a hub motor. The bike's range is therefore greater than with a hub motor paired with a battery of the same size.
5 assistance settings: Mode 0: assistance off Mode 1 (eco): increases your power by 70%: if you're pedalling at 100 W, the motor adds 70 W. Mode 2 (tour): increases your power by 150%: if you're pedalling at 100 W, the motor adds 150 W. Mode 3 (sport): increases your power by 220%: if you're pedalling at 100 W, the motor adds 220 W. Mode 4 (boost): increases your power by 280%: if you're pedalling at 100 W, the motor adds 280 W. Walk mode: helps you when walking alongside your bike.
The battery range varies depending on the weight being transported (user + load), the elevation gain, the wind and the outside temperature. Our tests have assessed the maximum battery range on relatively flat terrain without a load (no pannier bags or trailer): Mode 1 (eco): up to 150 km Mode 2 (tour): up to 100 km Mode 3 (sport): up to 65 km Mode 4 (boost): up to 40 km
Lithium-ion 36 V - 504 Wh battery. Locked into the bike's frame for better integration and protection. Quick release with key (3 keys included) to recharge it. Built-in carry handle. Weight: 3.1 kg Compatible with a 360 Wh battery extender (sold separately). Reference: 8655251
Press on the lower arrow at the side of the bike's screen for 3 seconds to turn on the light. Lights powered by the bike's battery: - LED AXA NXT60 front light. Power: 60 lux. - LED rear light fixed to the rear mudguard. The rear light remains active (on lower power) for 4 minutes after turning off the bike.
Colour control screen on the left of the handlebar. Information available: - current speed - motor power and user power - battery percentage - estimated remaining range (in km) - distance covered on this journey (manual reset) - total bike distance Use the switch next to the bike's left handle to choose your assistance mode. USB port (USB-A) for charging a smartphone (1.5 A).
Download the Decathlon Mobility app and turn your smartphone into a smart dashboard with live tracking and Auto Mode. Review the history and battery usage of your rides after you’ve finished, and manage your bike’s maintenance with ease (tutorials, workshop appointments, updates and insurance).
We have designed two versions of the e-actv 500: - Low frame version: The low frame version is easy to get onto. You only need to lift your leg 43 cm. This is particularly useful when you're using a child seat. - High frame version: The high frame version is stiffer and gives you more precise steering, particularly on rough terrain and when you're carrying a heavy load.
Sizes available for the low frame version: Size S: 1.50 m to 1.65 m. Size M from 1.66 m to 1.77 m. Size L: 1.78 m to 1.90 m. Sizes available for the high frame version: Size M from 1.66 m to 1.77 m. Size L: 1.78 m to 1.90 m. Size XL: 1.90 m to 2.01 m. If you're between 2 sizes: Get the smaller size if you want a more upright position. Get the bigger size if you want a more stretched-out position.
You can adjust the position of the handlebar by adjusting the angle of the stem using an Allen key. Raise the stem for a more upright back position. Lower it for a sportier position. Stem: - Length: 90 mm, diameter: 31.8 mm - Stem angle adjustment: from -10° (angled down) to +60° (raised) Headset: 1⅛". Ergonomic grips made from resin + cork composite.
Suntour SF15 NEX-E25 suspension fork. - Spring: coil - Steerer tube: 1⅛" aluminium - 60 mm travel - aluminium blade
ROCKRIDER PROTECT+ all-terrain tyres offering excellent puncture protection (maximum level of 5/5). Dimensions: 700x47 mm (ETRTO 47-622) Puncture protection level: 5/5 Type of protection: 3 mm high-density rubber + polyamide band dual protection Reflective strips: yes Carcass: 60 TPI Weight: 1010 g Tubeless compatible: No
We've chosen to use the Acolyte derailleur because of its durability. 8 gears: reducing the drivetrain to just 8 gears means bigger – and therefore sturdier – cogs. "Single click" switch: avoids gear changes being too quick when the chain is subjected to stresses that could damage it. 12x42 cassette: we've opted for a cassette with 12 teeth, rather than 11, on the smallest cog. This makes the cassette last longer.
In detail: - MICROSHIFT H083 12x42T 8-speed cassette - Single chainring: Miranda 38T anti-chain-drop (3D chain flow) chainring - 170 mm cranks - KMC E8 chain with master link - Rear derailleur: MICROSHIFT ACOLYTE - MICROSHIFT ACOLYTE shifter
Rims Reinforced (double-walled) asymmetric rims Inner width: 25c Not tubeless compatible Spokes: 32 front and 32 rear Rustproof treatment (galvanised) Hubs: Sealed cartridge bearings. Axles: Quick release
Rockrider Trekking long ride saddle. We conducted morphological studies aiming to understand where the pressure points are on different body types. We designed the size of the saddle and selected the foam so as to better distribute these pressure points. The saddle was then tested in real use and updated based on feedback from our testers.
Aluminium frame. The main tube is made using gravity casting. This technology makes it possible to create complex tube shapes with variable thicknesses. This allows us to strengthen the tube where needed so that it remains stiff and durable. Maximum tyre size compatible with the mudguard: 700x47 mm
TEKTRO T280 hydraulic disc brakes (160 mm front and rear diameter). Hydraulic brakes are more precise than cable-actuated brakes and the level of braking is easier to control.
We've chosen to use wide platform pedals to keep you more comfortable and give you a feeling of stability. Aluminium pedals.
We've developed a pannier rack that is specifically designed for the e-actv 500 (ref. 8828232). It is easy to attach to the frame using 4 screws, and needs no further adjustment. It is compatible with child seats and with most pannier bags on the market (including bags that use the MIK installation system). Max load: 27 kg.
The stand is fixed to the rear chainstay. This means that you can push your bike along without the pedals getting caught in the stand. Maximum load supported by the stand: 35 kg.
The mudguards ensure that there is always 6 mm of space between the tyre and mudguard. They allow you to ride on dirt tracks without mud getting clogged between the tyre and the mudguard.
Compatible with: • bottle cage: 1 fixing point on the frame. If you need a second bottle, we recommend using a fabric bottle holder on your handlebar. • rear pannier rack: compatible with most pannier racks available on the market. We recommend our dedicated rack (ref: 8828232) • frame lock (ref: 8735625) • pannier-rack-mounted child seat • frame-mounted child seat Not compatible with central stands.
24.6 kg in size M (with battery) 21.6 kg in size M (without battery)
The e-actv 500 is approved for a total maximum load of 120 kg: user + bike + additional load (bags, child, etc.).
