Double chainset and 10-speed cassette for riding on flat roads and mountains
Hydraulic disc brakes for effective braking
Aluminium wheels and 32mm tyres to reduce vibrations
10.2 kg in size M (without pedals)
Описание
Frame: Aluminium 6061 Fork: carbon Transmission: Shimano Tiagra 4700 2x10-speed (48/34 - 11/32) Brakes: Shimano Tiagra hydraulic brakes Wheels: VAN RYSEL EDR aluminium Tyres: CONTINENTAL Grand Prix TR (32 mm) Weight: 10.2 kg (size M, without pedals)

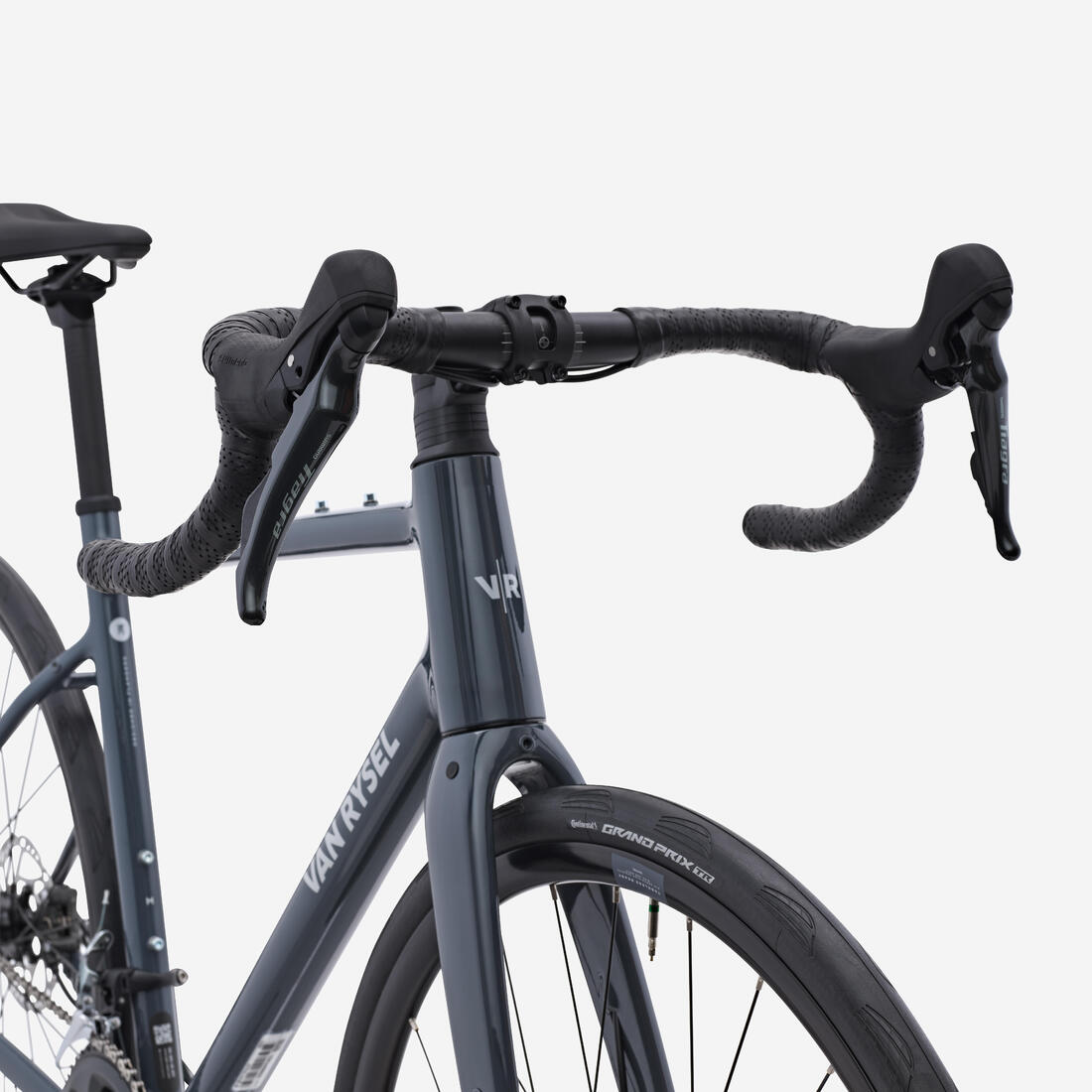

Handlebar: VAN RYSEL Material: Aluminium Width: XS 380 mm - S 400 mm - M 400 mm - L 420 mm - XL 420 mm Flare: 10° Internal cable routing: yes Stem: VAN RYSEL Material: Aluminium Length: XS 80 mm - S 80 mm - M 100 mm - L 100 mm - XL 110 mm Handlebar tape: VAN RYSEL EDR ULTRA

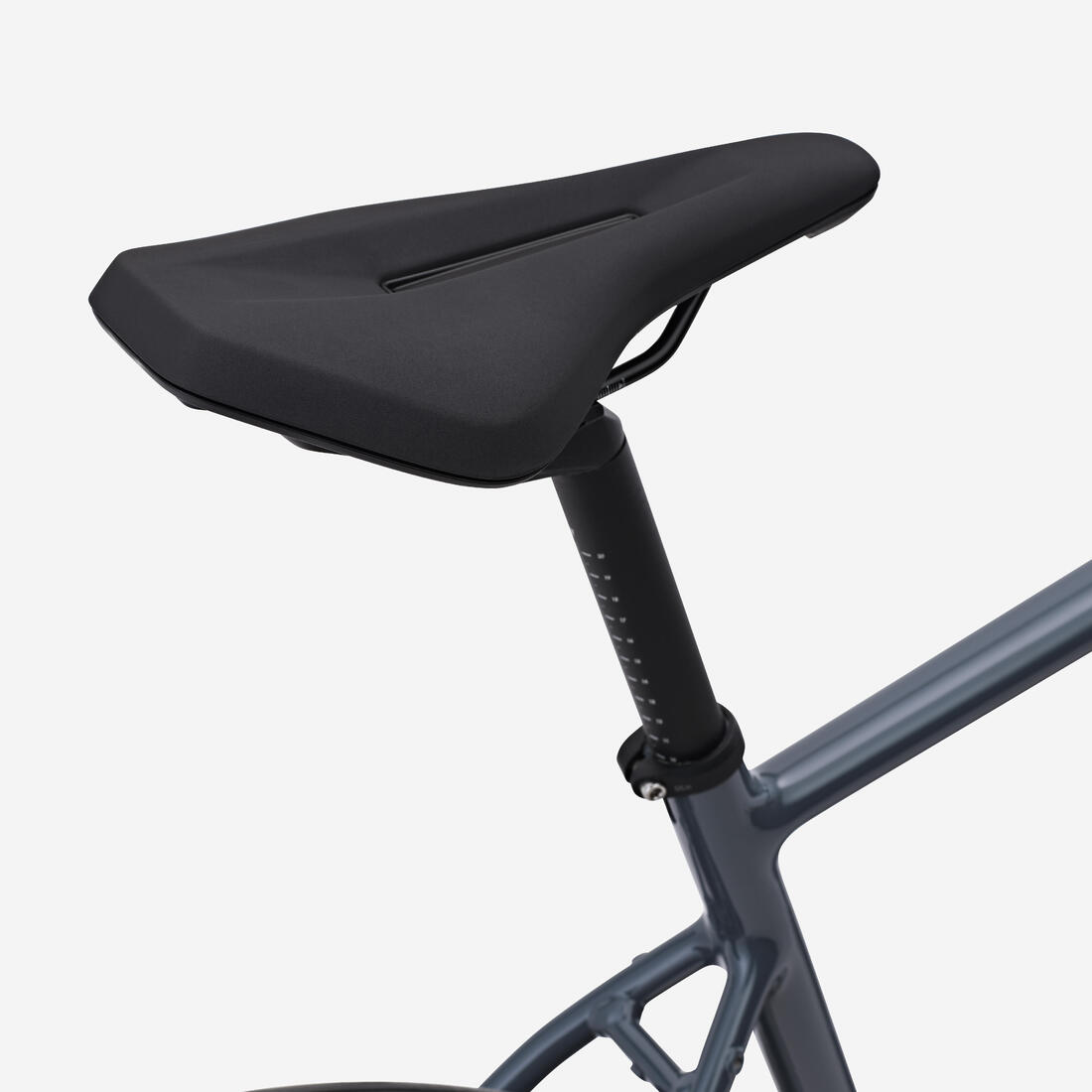

Saddle: VAN RYSEL Light 30° Seat post: VAN RYSEL aluminium Diameter: 27.2 mm Height: XS 250 mm - S 350 mm - M 350 mm - L 350 mm - XL 400 mm
Pedals: flat Torque spanner: included Lights: included (front and rear) Bell: included
M: 10.3 kg * Weights based on painted frames in production as illustrated. Actual weights will vary depending on colour, frame size and component variation. Maximum load (cyclist + load): 110kg
Tyres: CONTINENTAL GRAND PRIX TR Front tyre dimensions: 700x32 Rear tyre dimensions: 700x32 Tubeless Ready: YES

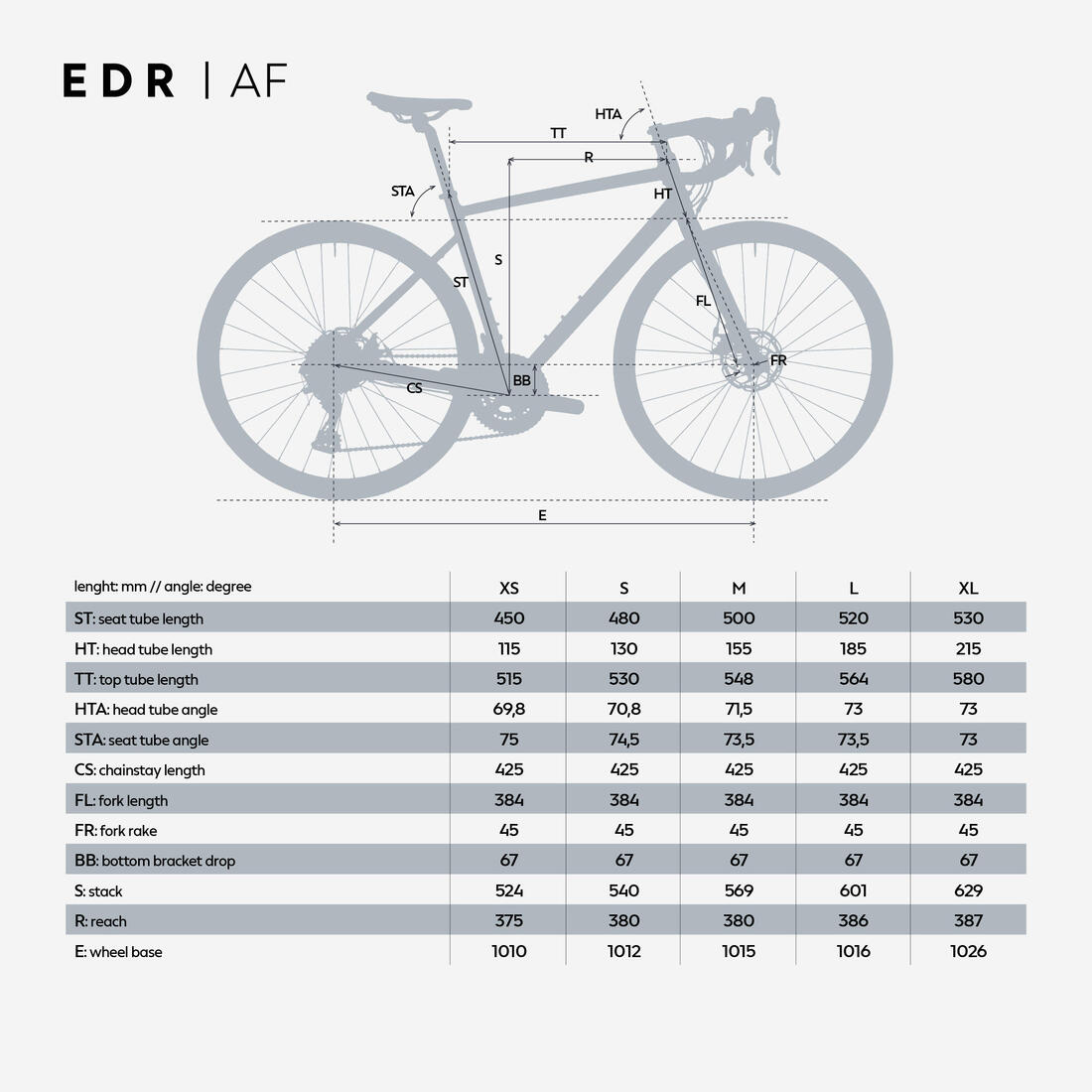

Frame: VAN RYSEL EDR AF2 Composition: Double-thickness 6061 aluminium Maximum clearance of the tyres: 38 mm Nb of inserts: 8 frame inserts - 6 fork inserts - 2 mudguard inserts Fork: 100% carbon Front axle: 12 x 100 mm Rear axle: 12 x 142 mm
Wheels: VAN RYSEL EDR Rim material: aluminium Type of rim: with hooks Tubeless Ready: yes Rim height: 24mm Internal width: 21TC Front hub: VR FRONT HUB TA - 28 spokes Rear hub: VR REAR HUB TA - 28 spokes Weight of pair: 2000 g
Brakes: Shimano Tiagra BR-4720 hydraulic Front disc: 160 mm Rear disc: 160 mm Disc mount: Centerlock
Groupset: Shimano Tiagra 4700 2x10-speed (mechanical) Chainwheel: Shimano Tiagra FC-4700 48/34 teeth Crank: Shimano Tiagra FC-4700 Crank length: 165 mm (XS) / 170 mm (S) / 172,5 mm (M) / 175 mm (L/XL) Cassette: Shimano HG500 10-speed 11/32 Chain: KMC X10 Front derailleur: Shimano Tiagra 4700 Rear derailleur: Shimano Tiagra 4700 GS Gear shifter: Shimano Tiagra 4721
Описание
Frame: Aluminium 6061 Fork: carbon Transmission: Shimano Tiagra 4700 2x10-speed (48/34 - 11/32) Brakes: Shimano Tiagra hydraulic brakes Wheels: VAN RYSEL EDR aluminium Tyres: CONTINENTAL Grand Prix TR (32 mm) Weight: 10.2 kg (size M, without pedals)
Handlebar: VAN RYSEL Material: Aluminium Width: XS 380 mm - S 400 mm - M 400 mm - L 420 mm - XL 420 mm Flare: 10° Internal cable routing: yes Stem: VAN RYSEL Material: Aluminium Length: XS 80 mm - S 80 mm - M 100 mm - L 100 mm - XL 110 mm Handlebar tape: VAN RYSEL EDR ULTRA
Saddle: VAN RYSEL Light 30° Seat post: VAN RYSEL aluminium Diameter: 27.2 mm Height: XS 250 mm - S 350 mm - M 350 mm - L 350 mm - XL 400 mm
Pedals: flat Torque spanner: included Lights: included (front and rear) Bell: included
M: 10.3 kg * Weights based on painted frames in production as illustrated. Actual weights will vary depending on colour, frame size and component variation. Maximum load (cyclist + load): 110kg
Tyres: CONTINENTAL GRAND PRIX TR Front tyre dimensions: 700x32 Rear tyre dimensions: 700x32 Tubeless Ready: YES
Frame: VAN RYSEL EDR AF2 Composition: Double-thickness 6061 aluminium Maximum clearance of the tyres: 38 mm Nb of inserts: 8 frame inserts - 6 fork inserts - 2 mudguard inserts Fork: 100% carbon Front axle: 12 x 100 mm Rear axle: 12 x 142 mm
Wheels: VAN RYSEL EDR Rim material: aluminium Type of rim: with hooks Tubeless Ready: yes Rim height: 24mm Internal width: 21TC Front hub: VR FRONT HUB TA - 28 spokes Rear hub: VR REAR HUB TA - 28 spokes Weight of pair: 2000 g
Brakes: Shimano Tiagra BR-4720 hydraulic Front disc: 160 mm Rear disc: 160 mm Disc mount: Centerlock
Groupset: Shimano Tiagra 4700 2x10-speed (mechanical) Chainwheel: Shimano Tiagra FC-4700 48/34 teeth Crank: Shimano Tiagra FC-4700 Crank length: 165 mm (XS) / 170 mm (S) / 172,5 mm (M) / 175 mm (L/XL) Cassette: Shimano HG500 10-speed 11/32 Chain: KMC X10 Front derailleur: Shimano Tiagra 4700 Rear derailleur: Shimano Tiagra 4700 GS Gear shifter: Shimano Tiagra 4721
