[Compatibility]
This motor is compatible with the FLTB-5 V2 (models from 2023) and FLTB-9.
Əsas menyu
Hədiyyə Kartlarını mağazamızdan əldə edə bilərsiniz
Əsas menyu
Kukilər siyasəti
Mən məxfilik siyasətində qeyd olunan şərtlərə uyğun olaraq məlumatlarımın işlənməsinə razılıq verirəm.Səbət
Səbətiniz boşdur
Very quick and easy to install, this motor is equipped with a variator that enables you to perfectly adjust your drift speed when fishing and roving over long distances.
Təhlükəsiz ödəniş
Biz həmçinin 150 avrodan yuxarı alış-verişlərdə 2, 3 və ya 4 dəfə ödəniş variantı təklif edirik.
Təhlükəsiz ödəniş
Biz həmçinin 150 avrodan yuxarı alış-verişlərdə 2, 3 və ya 4 dəfə ödəniş variantı təklif edirik.
Qaytarılma və dəyişdirilmə
Əşyalarınızı geri qaytarmaq üçün 90 gününüz var.
Əlavə məlumatı bu link vasitəsilə əldə edin.
Qaytarılma və dəyişdirilmə
Əşyalarınızı geri qaytarmaq üçün 90 gününüz var.
Əlavə məlumatı bu link vasitəsilə əldə edin.
This motor is compatible with the FLTB-5 V2 (models from 2023) and FLTB-9.

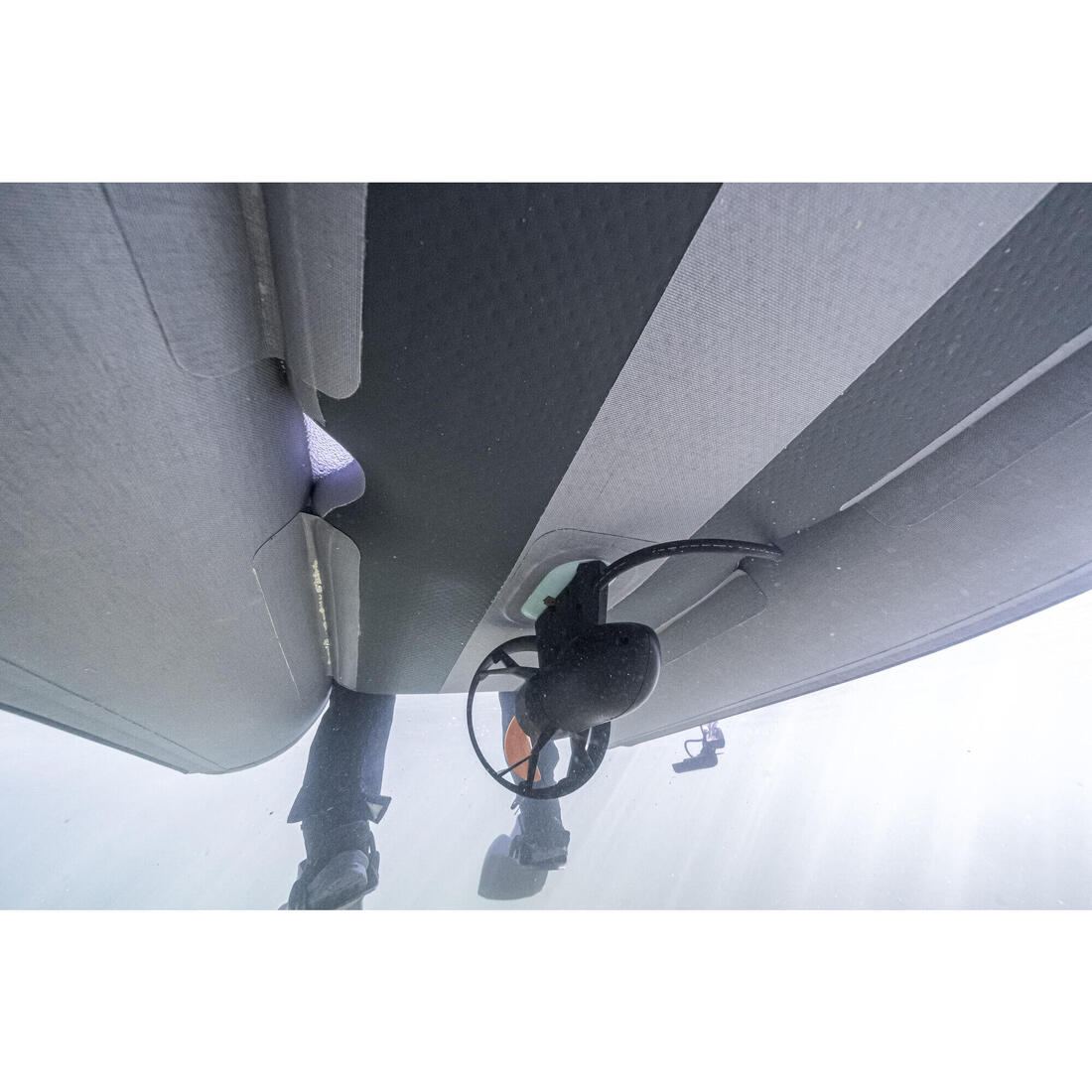

Slide it into the base under the float tube then install the safety pin.
The variator is used to precisely adjust the forward and reverse speed.
A quiet motor for discreet movements when fishing.
Offset control unit with magnetic base to fish in optimal comfort
Compact, thanks to the design of this engine: 25 x 18 x 19.5 cm.
Go to the SPARE PARTS section.
Təsvir
Full power forward: 25 A, accurate to 23.63 A (320 W) Full reverse: 21.2 A max (263 W) Average continuous current at half throttle = 5 A Using the motor at half throttle means very high savings on long journeys. A 12 V 50 Ah battery is therefore an ideal choice for a day’s fishing.

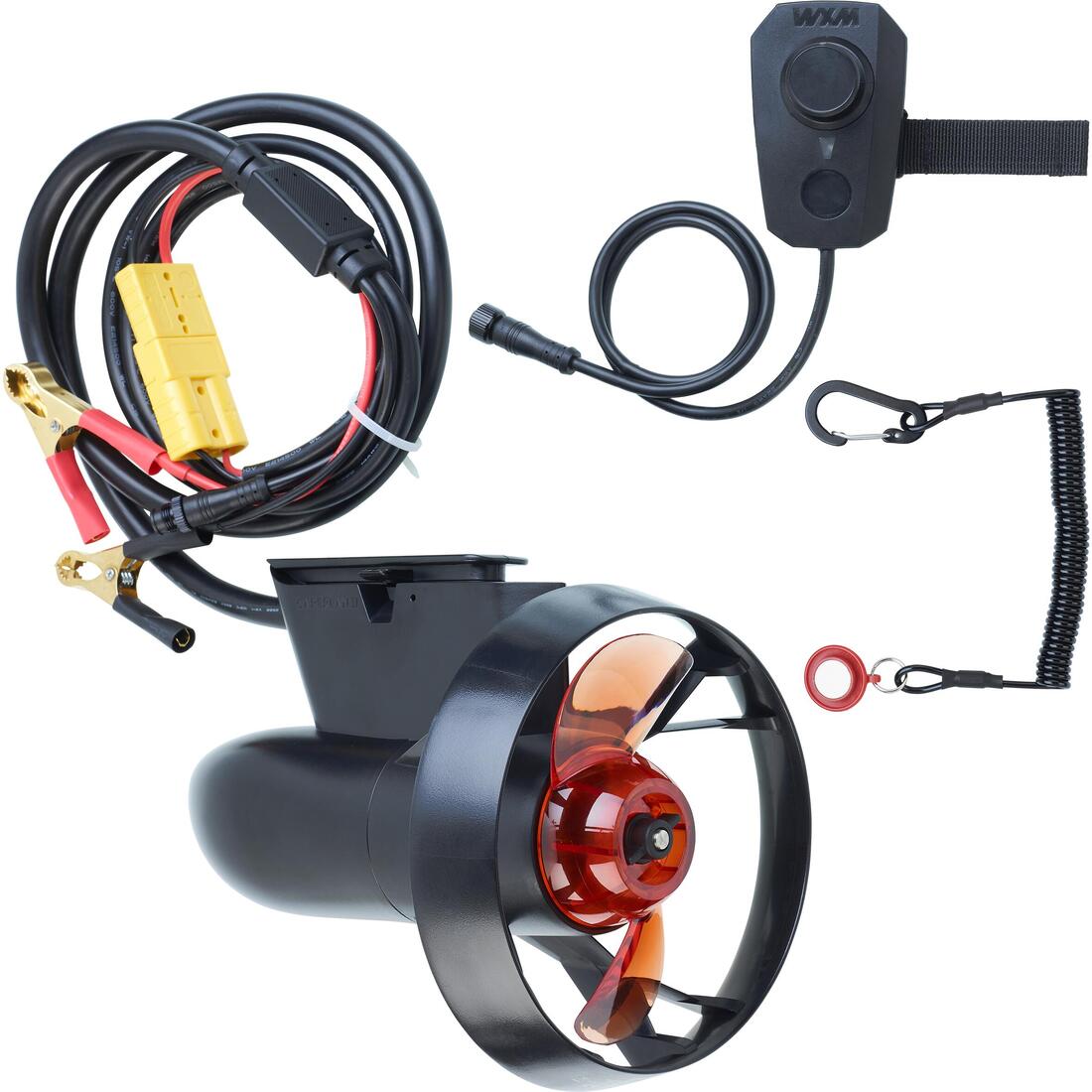

This motor is compatible with float tubes and kayaks equipped with the Decathlon fin base. (Reference: 8603033) Always disconnect the circuit breaker of the control unit before taking any other action. Insert the motor into the base under the boat, then install the safety pin. Connect the signal wire between the motor and the control unit. Check that the wire is properly assembled and watertight.
1. Put the magnetic circuit breaker on the control unit. The other end must be attached to the user. Set to 0. The LED must be green. 2. Forward/reverse operation of the motor is controlled using the rotary switch on the control unit. 3. You can use the variator on the control unit to drive the boat forwards or backwards and to adjust the speed. 4. Use fins or paddles to steer your boat.
The motor is designed for use with a 12 V battery. Depending on the battery used, the casting weight will be between 24 and 32 lbs. We recommend sealed lithium technology batteries, which are lighter and more compact. You’ll need to adjust the connector based on the type of battery that you’re using. 2 clamp connectors provided; the red wire must be connected to the positive terminal and the black wire to the negative terminal.
MOTOR: Power in WATTS: 240 W Casting weight in lbs: between 24 and 32 lbs depending on the battery used Nominal voltage: 12 Volts Input voltage range: 9-17 Volts Operating current: 18 Amperes Watertightness standard: IPX8 Total dimensions: 25 x 18 x 19.5 cm (length x width x height) PROPELLER: 15 cm (diameter) CONTROL UNIT: 9 x 5.7 x 4.5 cm (length x width x height) 2.8 cm (diameter of the switch) Total weight: 3 kg
Always use your boat and this motor in accordance with the local safety regulations. When onboard your boat, you must always have a life jacket, in accordance with the local regulations, and a paddle or fins for use in the event of a breakdown. Only for use by adults. Do not start the motor out of the water. Take care when close to the propeller to avoid injury.
The following parts are available on this web site or in our stores (to order): 8807567 FLTB MTR CONTROL UNIT 8807590 FLTB MTR CIRCUIT BREAKER 8807595 FLTB MTR PROPELLER 8807597 FLTB MTR PROPELLER SHIELD
Təsvir
Full power forward: 25 A, accurate to 23.63 A (320 W) Full reverse: 21.2 A max (263 W) Average continuous current at half throttle = 5 A Using the motor at half throttle means very high savings on long journeys. A 12 V 50 Ah battery is therefore an ideal choice for a day’s fishing.
This motor is compatible with float tubes and kayaks equipped with the Decathlon fin base. (Reference: 8603033) Always disconnect the circuit breaker of the control unit before taking any other action. Insert the motor into the base under the boat, then install the safety pin. Connect the signal wire between the motor and the control unit. Check that the wire is properly assembled and watertight.
1. Put the magnetic circuit breaker on the control unit. The other end must be attached to the user. Set to 0. The LED must be green. 2. Forward/reverse operation of the motor is controlled using the rotary switch on the control unit. 3. You can use the variator on the control unit to drive the boat forwards or backwards and to adjust the speed. 4. Use fins or paddles to steer your boat.
The motor is designed for use with a 12 V battery. Depending on the battery used, the casting weight will be between 24 and 32 lbs. We recommend sealed lithium technology batteries, which are lighter and more compact. You’ll need to adjust the connector based on the type of battery that you’re using. 2 clamp connectors provided; the red wire must be connected to the positive terminal and the black wire to the negative terminal.
MOTOR: Power in WATTS: 240 W Casting weight in lbs: between 24 and 32 lbs depending on the battery used Nominal voltage: 12 Volts Input voltage range: 9-17 Volts Operating current: 18 Amperes Watertightness standard: IPX8 Total dimensions: 25 x 18 x 19.5 cm (length x width x height) PROPELLER: 15 cm (diameter) CONTROL UNIT: 9 x 5.7 x 4.5 cm (length x width x height) 2.8 cm (diameter of the switch) Total weight: 3 kg
Always use your boat and this motor in accordance with the local safety regulations. When onboard your boat, you must always have a life jacket, in accordance with the local regulations, and a paddle or fins for use in the event of a breakdown. Only for use by adults. Do not start the motor out of the water. Take care when close to the propeller to avoid injury.
The following parts are available on this web site or in our stores (to order): 8807567 FLTB MTR CONTROL UNIT 8807590 FLTB MTR CIRCUIT BREAKER 8807595 FLTB MTR PROPELLER 8807597 FLTB MTR PROPELLER SHIELD
